Ventilators

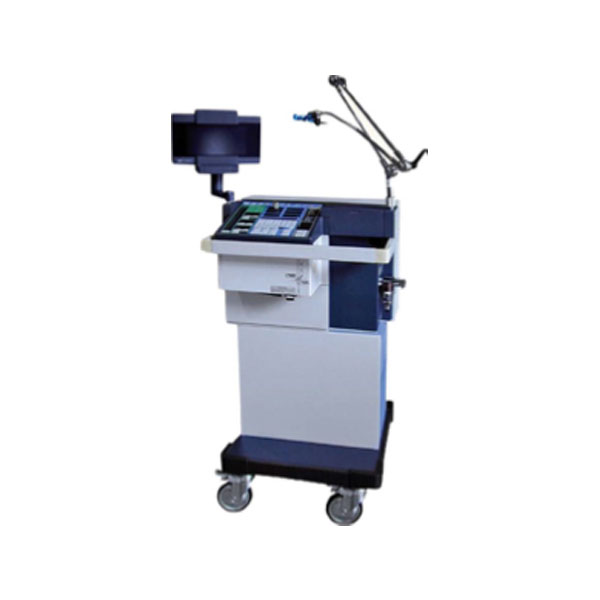

Puritan Bennett® 7200AE Ventilator

Quality Features

• Advanced Micro-processor controlled unit
• Adult & Pediatric Ventilator
• Fit for Intensive Care Unit, Sub acute and CPAP
• Three Wave forms supported - Sine, Square & Descending Ramp

Specifications

• Invasive Modes
• Pressure-controlled Modes: Pressure Control, SIMV,CPAP
• Flow-controlled modes:CMV, Flow-By Time controlled modes: SIMV & CMV Combined modes: SIMV. Operating Range Controls: Respiratory Rate: 0.5 to 70 bpm. Tidal Volume: 0.1 to 2.5 Liters Peak Flow
• 10 to 320 Lpm 02% 21 to 100%
• Alarms: Inverse l:E ratio; General system failure; Low peak pressure; Loew PEEP
• Low tidal volume; Low minute ventilation high/low breath rate and apnea
• Front Panel Controls: Apnea Parameters; auto Peep; pressure support; pressure control; tidal volume; respiratory rate; peak inspiratory flow; sensitivity; 02%, high pressure limit; low inspiration pressure; low exhaled tidal volume; low exhaled minute volume; high respiratory rate; CMV;SIMV;CPAP

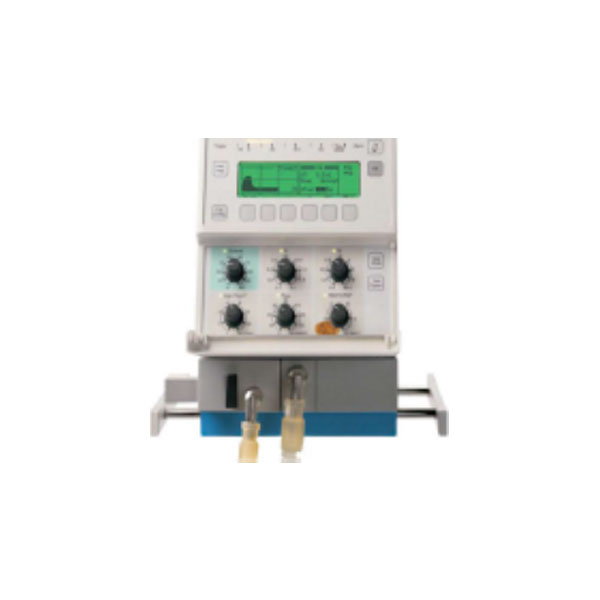

Drager Babylog 800

System Features

• The Babylog 8000 plus is designed for harmonious ventilation Of small children and the smallest pre-term babies
• It has an advanced upgrade platform that has allowed it to Keep pace with all new forms of treatment and clinical advances
• Sensitive synchronization with gentle but precise support for spon­taneous breathing reduces the work of breathing and makes the ventilation process much more comfortable for patients

System Features

• High Frequency Ventilation: CPAP+HFV, IMV+HFV Frequency: 5 to 20 Hz
• Volume Guarantee Ventilation: SIMV+VG, SIPPV+VG Oxygen mixer loss (bleed flow): 0 (zero) L/min
• lnspiratory oxygen concentration:21-100 vol. %oxygen Peak inspiratory pressure: 10 to 80 mbar
• PEEP/CPAP: 0 to 25 mbar
• Maximal frequency: 200 bpm
• lnspiratory time: 0.1 to 2 seconds
• Expiratory time: 0.2 to 30 seconds
• lnspiratory flow: 1 to 30 L/min
• Base Flow (VIVE): 1 to 30 L/min

Monitoring

• Flow monitoring: at the Y-piece, integrated
• Volume monitoring: at the Y-piece, integrated Lungfunction monitoring:compliance, resistance C20/C
• Method: linear regression analysis
• Fi02 monitoring: integrated
• Real-time curves: Flow and pressure, integrated lnspiratory oxygen concentration: 21-100 vol.% oxygen Peak pressure: to 99 mbar
• Mean airway pressure: to 99 mbar
• Graphic trends: 6 parameters, integrated
• Logbook: record of up to 100 alarms
