CT Scanners

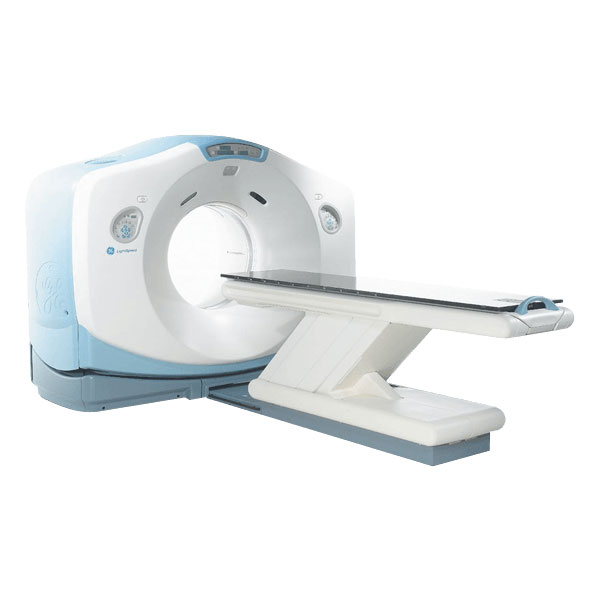

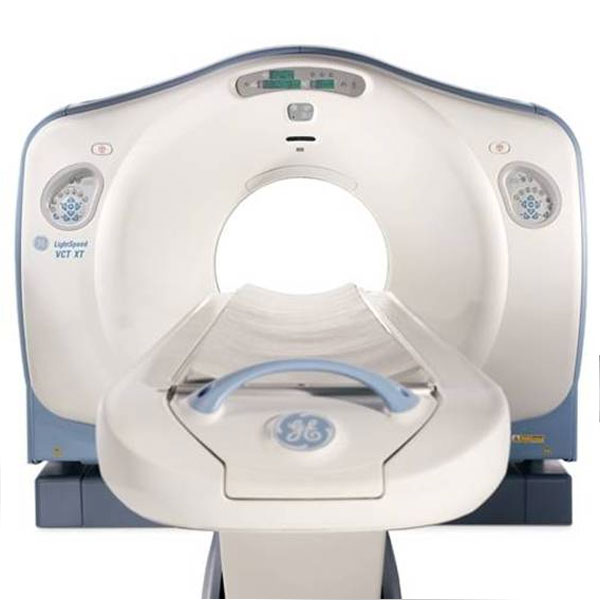

GE Lightspeed VCT 64 Slice CT

The GE LightSpeed VCT is a high image resolution 64-slice CT system. The LightSpeed VCT features 40 mm coverage of patient anatomy per rotation and 64 slices at 0.625 mm. The LightSpeed VCT offers 5-beat cardiac covering 137.5 mm per second. The high image resolution and acquisition speed is ideal for angiography, cardiac neuro, pediatric, pulmonary and trauma when freezing of cardiovascular motion, pure arterial phase imaging, and superior MultiPlanar reformats are key.

System Features

• General description: Covers 4 cm of patient anatomy per rotation, gathering 64 slices at 0.625 mm
• Special features: 5-Beat Cardiac, covers 137.5 mm per second.

Specifications

• SafeCT Low-dose Solution
• Performix Pro 8.0 MHU Tube
• Digital Detector V-RES 64
• Options: Smart Prep
• AutomA 3000 Image Series
• Connect Pro
• Direct-3D Direct
• Sub-0.4-Second
• Scan
• VolumeViewer
• AxialShuttle
• SmartScore
• Noise Reduction Filter
• SmartStep

CT Scanners – GE Lightspeed 16

The LightSpeed 16, with its sub-millimeter slices and routine 16-slice coverage delivers expanded clinical value while addressing your productivity and care of the patient. This 16 slice scanner is a development of GE’s existing multi-slice LightSpeed range, and can image 16 simultaneous 0.63 or 1.25 mm slices per rotation, in addition to other 8, 4, 2 and 1 slice modes.

System Features

• 70cm Gantry Opening
• LightSpeed Gantry W/RF Slip-Ring
• ± 30 degrees Gantry Tilt
• Helical Tilt
• Dual High Color, High Contrast 19in. Flat Panel LCD Monitors
• Performix 6.3 mHu Tube
• 16 Slice Matrix Detector
• Patient 16-Slice
• Patient Table with Metalless Cradle
• Light Speed PDU
• High Performance DAS
• 53.2kW Generator, 10 to 440 MA
• 80, 100, 120, & 140kV Selections
• Sub-Second Scanning (0.5 Second Scan Time)
• Auto MA to Optimize X-Ray Usage
• SMART Start Gantry Activated Scanning
• SMART Helical for Exam Streamlining
• SMART Prep Instant Contrast Monitoring
• SMART Speed Scan Time Enhancer
• SMART Tools to Automate Exam Tasks
• Variviewer
• 120 sec. Continuous Helical & Up to 2000 Contiguous Rotations
• 160cm Max. Scan Volume Based on Table Travel
• Pitch of Quad 0.75:1 (3:1) or 1.5:1 (6:1)
• Magnetic Optical Disk Image Storage

Signature Features

• The 4th evolution in LightSpeed
• GE microVoxel® technology
• Image quality in three dimensions
• Ideal for Complete & Fast Head Scanning

CT Scanners – GE Lightspeed Plus

The LightSpeed Plus (H2 Gantry) system is a whole body Multi-Slice Helical Computed Tomography Scanner Capable of Scan Routine 05-second Full 360-Degree Rotation Scans, simultaneously acquiring multiple slices in a single scan rotation. The system is designed to produce maximum image quality with full Simultaneous Scan. Image Reconstruction. Filming, Archiving, Networking & Display.

System Features Components

• 70cm (H2) Gantry Opening
• ± 30 Degree Gantry Tilt
• LightSpeed Gantry w/RF Slip-Ring
• LightSpeed Operator’s Console
• Patient Table w/Metalless Cradle
• Performix 6.3mHu Tube
• Quad Slice Detector
• LightSpeed PDU
• High Performance Low Noise DAS
• Octane High Speed Computer
• 53.2kW Generator, 10 to 440 mA
• 80, 100, 120, & 140kV Selections
• EMC Collimator
• Magnetic Optical Disk Image Storage
• High Speed Dicom Network Ready
• Dual 19 in. Flat Screen Color Monitors

Signature Features

• 0.5-second Full 360º Rotation Scans
• Multiple Slices in a Single Scan Rotation
• Optimum image quality with simultaneous scan, image reconstruction, filming, archiving, networking, & display

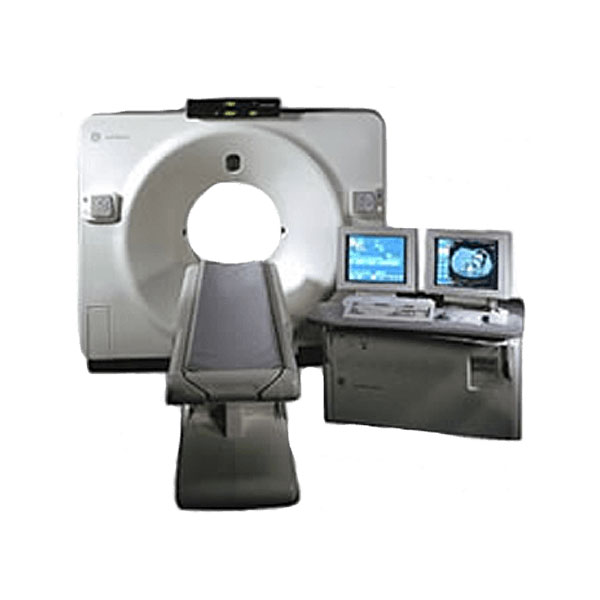

CT Scanners – GE Hispeed NXI

The GE HISpeed NX/i system with Pro Performance Package is a premium Helical whole body Computed Tomography (CT) Scanner. The system configuration is designed to produce up to two (2) Images of optimum image quality per rotation, fully simultaneous scan reconstruction, and display.

System Features Components

• 70cm Gantry Opening
• HiSpeed Multi-Slice Slip Ring Gantry
• 0.7 Second Rotation Speed
• HiSpeed Operator’s Console
• HiSpeed Patient Table
• Custom Designed Image Generator
• Magnetic Disk Drive
• High Frequency Generator
• 3.5 MHU / 6.3 MHU Performix Tube
• Power Distribution Module
• Patient Positioning and Comfort Accessories

Signature Features

• 0.7 Second Rotation Speed
• Asymmetric Scanning
• CT HiLight Detector – Dual Array Matrix
• Data Acquisition System – Two Channel
• High Impact Graphics Engine

CT Scanners – GE Hispeed CTI

A single slice scanner with a high capacity tube for easing out work in high throughput diagnostic centres. With sub second scanning and advanced features like SMART mA this system will give out exceptional image quality.

Specifications

• System type: Single slice helical/ spiral
• Rotation time : 0.8,1,2,3 and 4 secs
• Sub second scanning
• Partial scan time : 0.63 sec
• Continuous scan time : 90 sec
• Slice thickness: 1,2,3,5,7 and 10 mm
• Field of View (FOV) : Upto 50 cms
• Reconstruction time : 2 secs
• Gantry Aperture : 70 cms
• Patient scannable range : 170 cms
• Patient load bearing capacity: 180 Kgs
• Gantry Tilt : ± 30°
• Laser / Halogen Alignment lights
• X-ray generator : 48 KW
• X-ray tube : Performix 6.3 MHU / 3.5 MHU
• mA rating: 40-400 mA in 10 mA increment
• KV rating : 80, 100, 120 and 140 KV
• Display monitor : 20” (1280 X 1024) high resolution
• Detector : HiLight 852 channels
• Computer System : Silicon Graphics (SGI) with 9 GB hard disk storing around 5000 images
• DICOM 3.0
• Smart mA
• Smart Prep
• 3D, MPR, CTA (CT, Angiography)
